OTT-1007 · Transformers

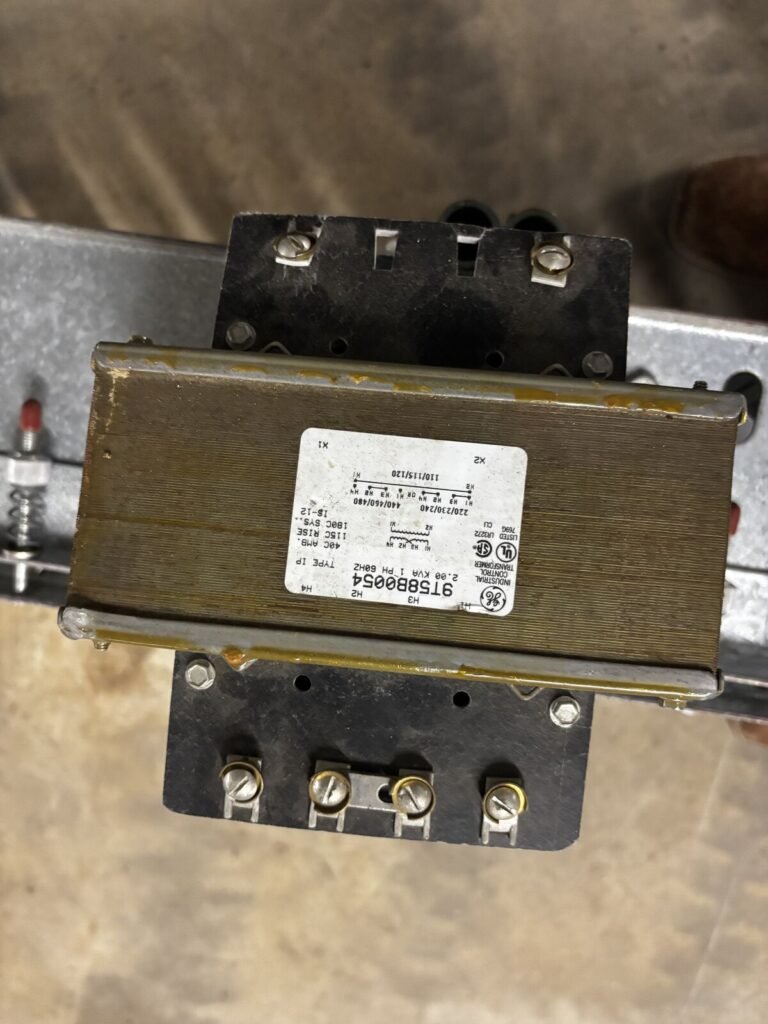

GE 2 kVA Industrial Control Transformer — 240/480V to 120V, Type IP
Request Quote
1 unit
| Manufacturer | General Electric |
|---|---|
| Model | 9T58B0054 |
| Rating | 2.00 kVA |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| Type | IP |
| Primary | 220 / 230 / 240 and 440 / 460 / 480 V |
| Secondary | 110 / 115 / 120 V |
| Terminals | H1 H2 H3 H4 primary, X1 X2 secondary |
| Ambient | 40 °C |
| Temp Rise | 115 °C |
| Insulation System | 180 °C |
| Listings | UL Listed 769G; CSA LR3272 |
Condition
Used. Core laminations show light surface rust and yellow varnish residue on the edges. Mounting brackets intact; all primary and secondary screw terminals present and unbroken. No burn marks or charring.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
