OTT-1002 · Transformers
General Electric 5 kVA Single-Phase Dry-Type Transformer — 240/480V to 120/240V
Request Quote
1 unit
| Manufacturer | General Electric |
|---|---|
| Model | 9T21B1004 G2 |
| Rating | 5 kVA |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| High Voltage | 240 V (H1-H3, H2-H4) or 480 V (H2-H3), lines on H1 & H4 |
| Low Voltage | 120 V (X1-X3, X2-X4) or 240 V (X2-X3), lines on X1 & X4 |
| Temp Rise | 115 °C |
| Type | Q M |
| Construction | Open core-and-coil, louvered wrapper |
| Nameplate Drawing | N.P. 183796 |
| Origin | Fort Wayne, Indiana — Made in U.S.A. |
Condition

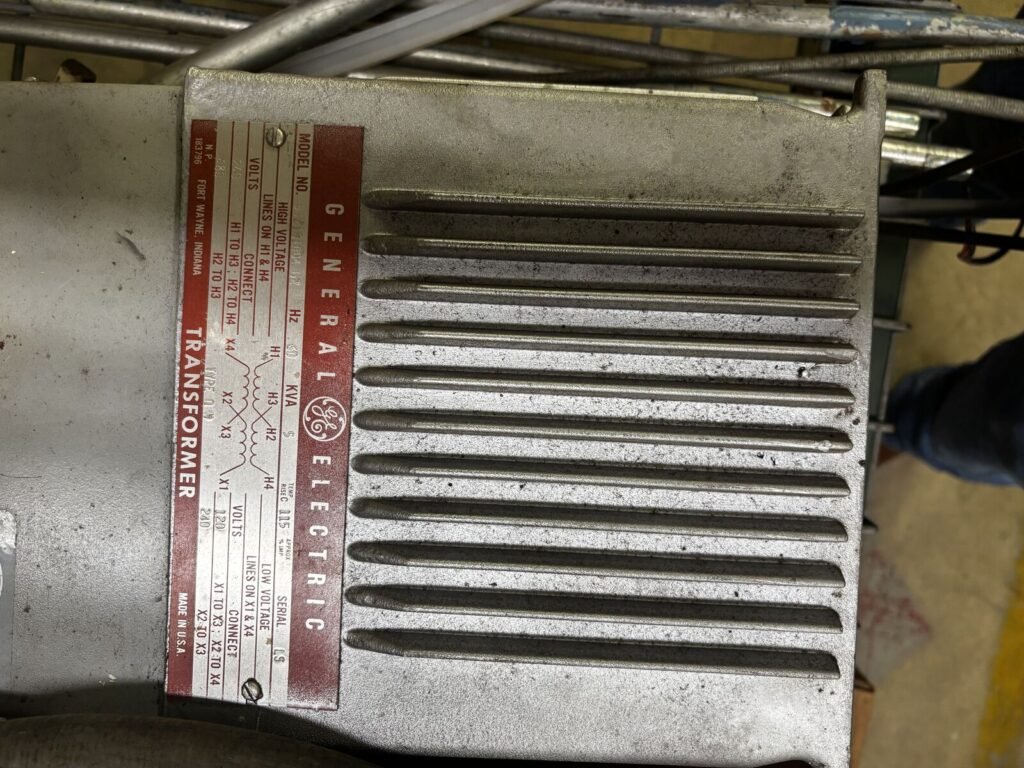

Used. Louvered core-and-coil housing carries heavy dust and grey surface oxidation. No rust-through, no visible damage. Nameplate intact and legible.
Before you orderModel number is die-stamped and slightly light — verify against the unit before ordering. The serial field holds only two stamped characters and the % impedance field was left blank at the factory.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
