OTT-1003 · Transformers

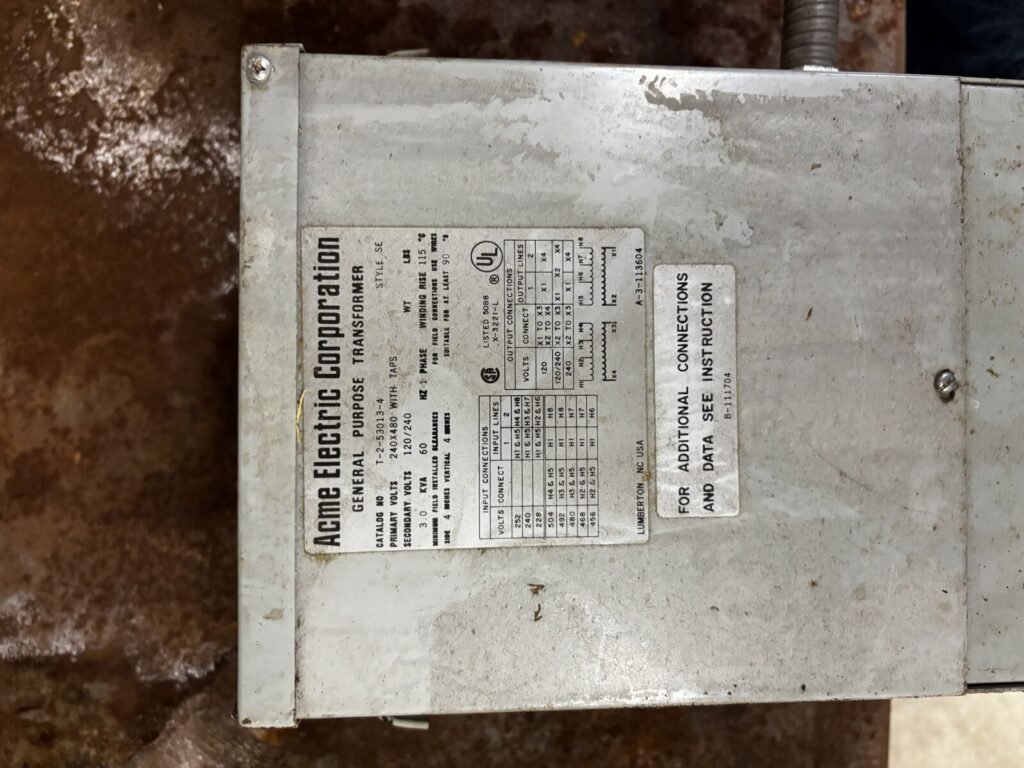

Acme Electric 3 kVA Single-Phase Transformer — 240x480V to 120/240V, Style SE
Request Quote
1 unit
| Manufacturer | Acme Electric Corporation |
|---|---|
| Model | T-2-53013-4 |
| Rating | 3.0 kVA |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| Primary | 240 x 480 V with taps |
| Secondary | 120/240 V |
| Style | SE |
| Winding Rise | 115 °C |
| Primary Taps | 252 / 240 / 228 and 504 / 492 / 480 / 468 / 456 V |
| Minimum Clearances | 4 in. side, 4 in. vertical |
| Field Wiring | Wires suitable for at least 90 °C |
| Listings | UL Listed, CSA |
| Origin | Lumberton, NC USA |
Condition
Used. Painted steel enclosure with scuffing, a chalky faded finish and dirt. Nameplate fully legible. (The rust visible in the photo is on the surface the unit is resting on, not on the transformer.)
Before you orderThe weight field on the nameplate is blank. A few tap-table terminal pairings are at the edge of legibility — the voltage column itself is clear. No serial number on this nameplate style.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
