OTT-1008 · Transformers
Acme 3 kVA Single-Phase Transformer — 240x480V to 120/240V, NEMA 3R Outdoor, Shielded
Request Quote
1 unit
| Manufacturer | Acme Transformer (Acme Electric Corporation) |
|---|---|
| Model | T-2-53013-4S |
| Rating | 3 kVA |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| Primary | 240 x 480 V with 2 × 2.5% FC taps |
| Secondary | 120/240 V |
| Style | SR |
| Enclosure | NEMA Type 3R Outdoor |
| Weight | 55 lbs |
| Winding Rise | 115 °C |
| Insulation System | H-3180-L, Class 180 |
| Features | Shielded for cleaner power |
| Minimum Clearances | 4 in. side, 4 in. vertical |
| Listings | UL Listed, CSA |
Condition

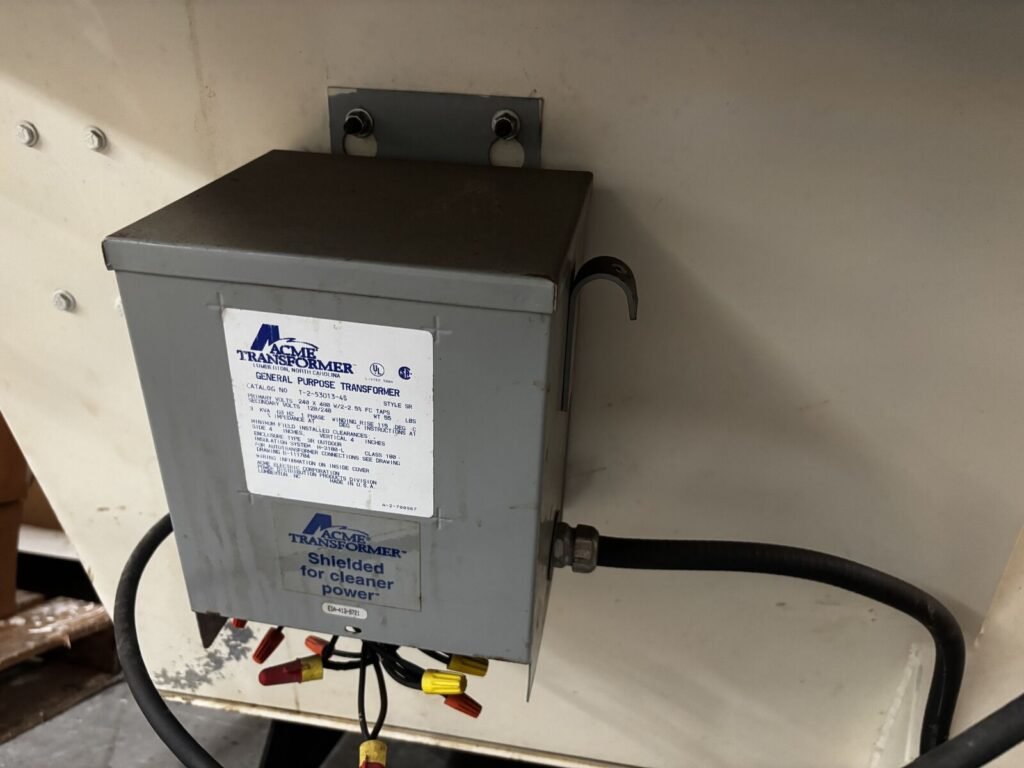

Used — photographed still wired in place. Grey enclosure with light surface rust streaking on the cover and mounting bracket. Secondary leads exit the bottom with wire nuts attached; flexible conduit connected on the right side.
Before you orderThis transformer is bolted to the same machine panel as the SWF McDowell 201 LH (OTT-7003) — confirm with us whether you want it as a standalone item or with that machine. No serial number field on this nameplate style.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
