OTT-2012 · Switchgear & Motor Control

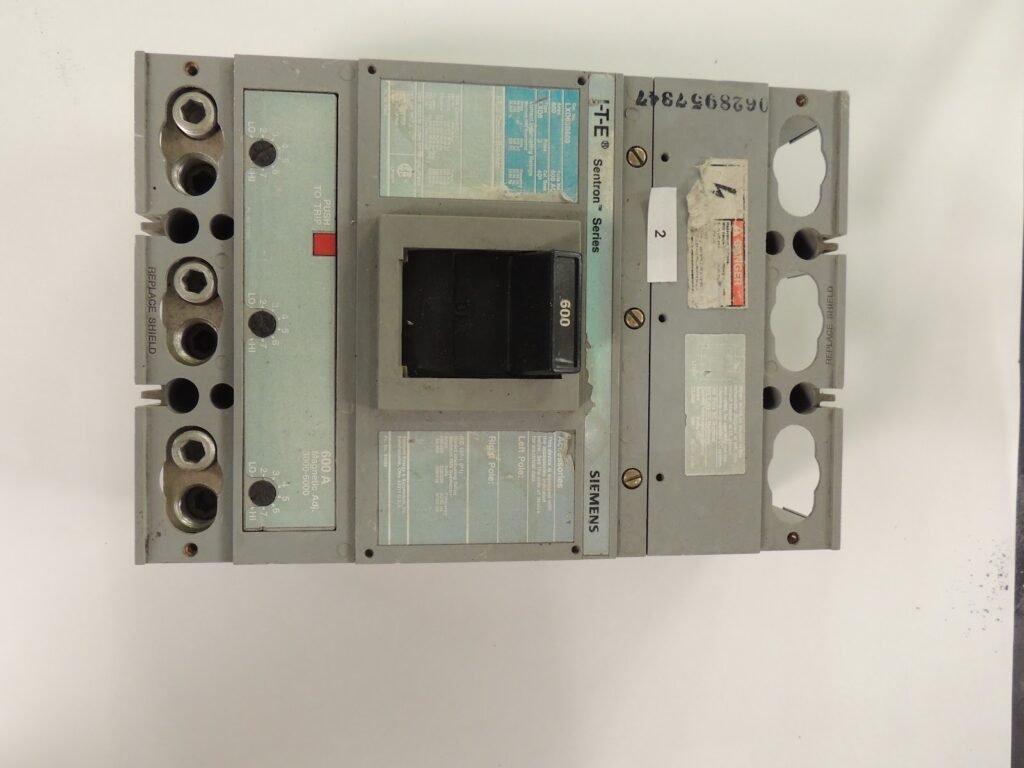

Siemens / ITE Sentron LXD63B600 Circuit Breaker — 600A, 3-Pole, 600V, Adjustable Magnetic
$525
1
FOB North Carolina — freight quoted separately.
| Manufacturer | Siemens / I-T-E |
|---|---|
| Model | LXD63B600 |
| Rating | 600 A, 3-pole, 600 VAC |
| Frame / Type | Sentron Series, Type LXD6, Cal. Base 400 |
| Interrupting Rating | 65,000 A @ 240 VAC, 35,000 A @ 480 VAC, 25,000 A @ 600 VAC (RMS symmetrical) |
| Trip Unit | Thermal-magnetic with adjustable magnetic trip, 3000–6000 A range (LO–HI per pole) |
| Frequency | 50/60 Hz |
| Wire Connectors | TC1J6600, TC2J6500, CCL600 — see nameplate for full range |
| Listings | UL Listed, CSA LR13077; UL File LP-7248 |
Condition
Used, working-shop condition. Case is sound with surface dirt and scuffing typical of panel removal. The blue Sentron data label is worn at the upper edge but the catalog number, ampere and interrupting ratings remain legible. All three magnetic-trip adjustment screws are present and turn. Line and load lug pads clean with light tarnish. Phase barriers and Replace Shield covers present.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
