NEMA Size 0
Westinghouse A200M0CAC NEMA Size 0 Motor Starter with Thermal Overload — 3-Pole
A200 series NEMA magnetic motor starter
$85
Details →
OTT-2057 · Switchgear & Motor Control

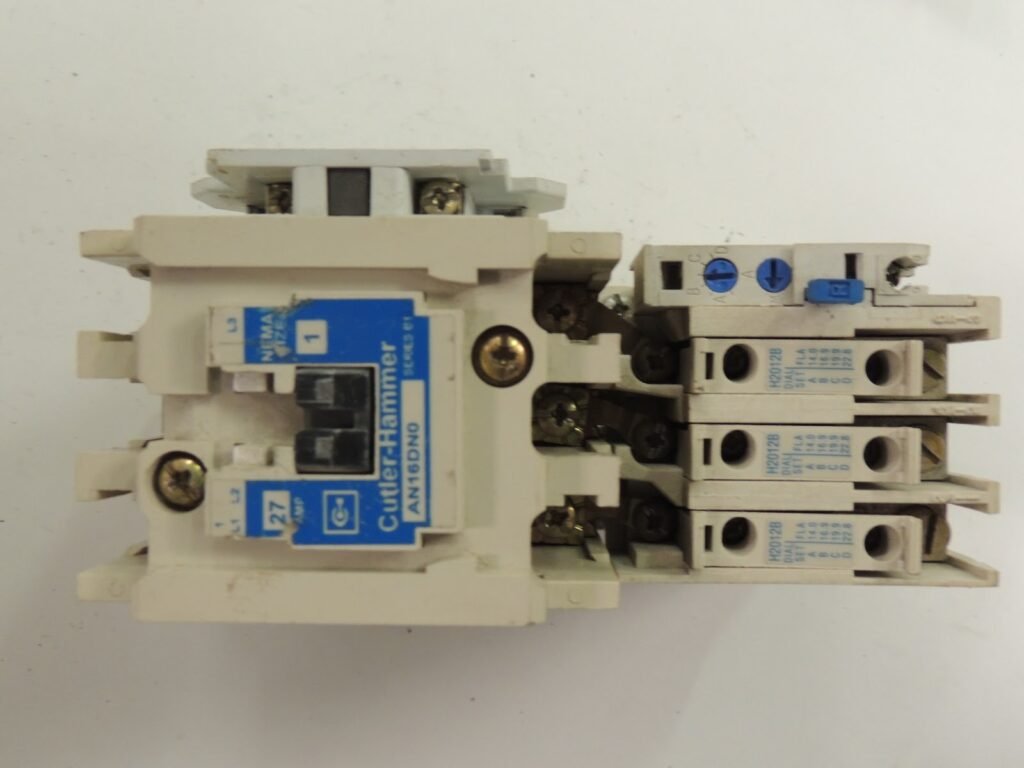

Cutler-Hammer AN16DNO NEMA Size 1 Magnetic Motor Starter — 27A, 3-Pole, 600V
$110
1
FOB North Carolina — freight quoted separately.
| Manufacturer | Cutler-Hammer (Eaton) |
|---|---|
| Model | AN16DNO |
| Type | Freedom series NEMA full-voltage non-reversing magnetic starter |
| NEMA Rating | 27 A, 600 V |
| Max HP (3-ph, 3-pole) | 7.5 hp @ 200 V; 7.5 hp @ 230 V; 10 hp @ 460 V; 10 hp @ 575 V |
| Max HP (1-ph, 2-pole) | 2 hp @ 115 V; 3 hp @ 230 V |
| Frequency | 60 Hz |
| Auxiliary Contact Fitted | C320KGS1, Series A2 — EN 60947-5-1 / IEC 947-5-1, Ui 690 V, Ith 10 A, Uimp 6 kV; AC-15: 9 A @ 12-48 V, 6 A @ 48-120 V, 4 A @ 120-240 V, 2 A @ 240-440 V, 1.5 A @ 440-660 V; A600 / P300 rating |
| Contact Kit Reference | C306GN3 Series B1 auxiliary — for use only with Cutler-Hammer AE16, AE56, CE15, CE55 G/H/J/K, AN16, AN56, CN15, CN55, D, F, G, A25 (40-60 amp), term block C306TB2B |
| Aux Short-Circuit Withstand | 5000 A RMS, 600 VAC |
| Standards | UL Listed Ind. Cont. Eq. A161; CSA; CE; VDE-0660 |
Condition
Used, good. Size 1 Freedom-series starter with auxiliary contact blocks fitted. The NEMA rating plate with the full horsepower table is legible, as are both auxiliary contact plates. Contact carriers move freely; housings clean with light dust.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
