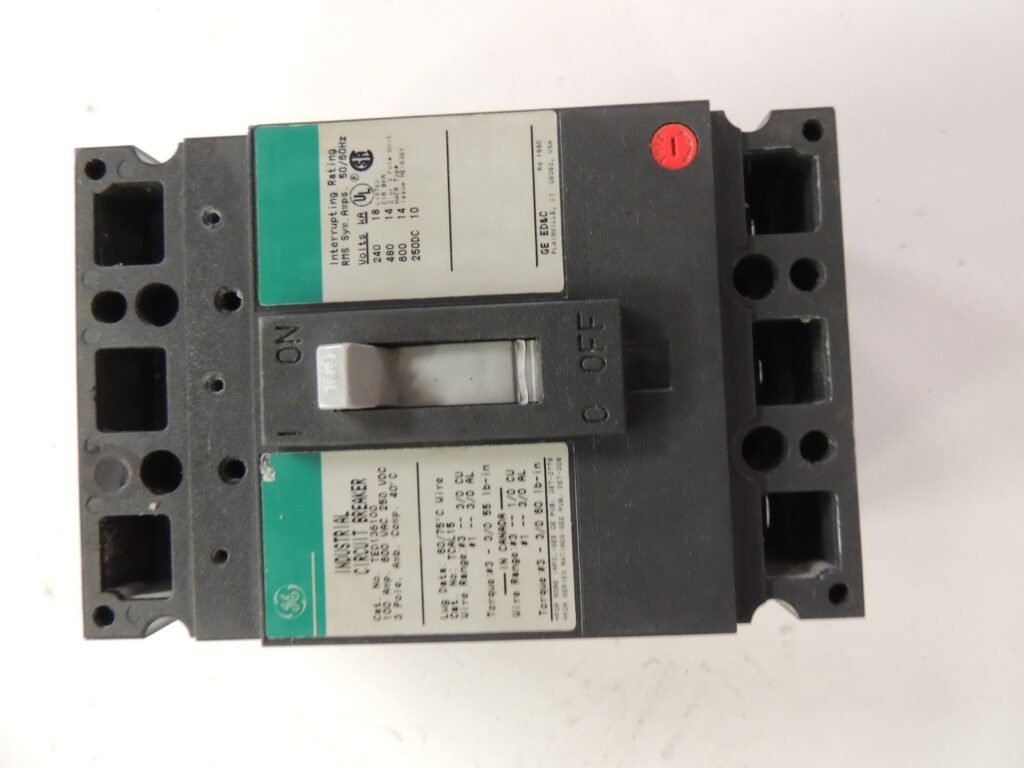

GE TED136100 Industrial Circuit Breaker — 100A, 3-Pole, 600V
$85
1
FOB North Carolina — freight quoted separately.
| Manufacturer | General Electric |
|---|---|
| Model | TED136100 |
| Rating | 100 A, 3-pole, 600 VAC / 250 VDC |
| Frame / Type | TED6 frame, industrial circuit breaker |
| Interrupting Rating | 18 kA @ 240 V, 14 kA @ 480 V, 14 kA @ 600 V, 10 kA @ 250 VDC (RMS symmetrical, 50/60 Hz) |
| Ambient Compensation | 40 °C |
| Lug Catalog No. | TCAL16 |
| Wire Range | #1 – 3/0 Cu; #1 – 3/0 Al |
| Lug Torque | 55 lb-in (#3 – 3/0 Cu); 60 lb-in in Canada (#3 – 3/0 Al) |
| Type | HACR Type, UL Issue NE-6161 |
| Manufacturer Mark | GE ED&C, Plainville, CT — Rd 1990 |
Condition
Used, good. Both green GE labels are complete and fully legible, including the whole interrupting-rating table. Case is sound with light dirt. Handle operates. Bolt-on load straps present and straight; lug clamps clean.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
