OTT-2049 · Switchgear & Motor Control

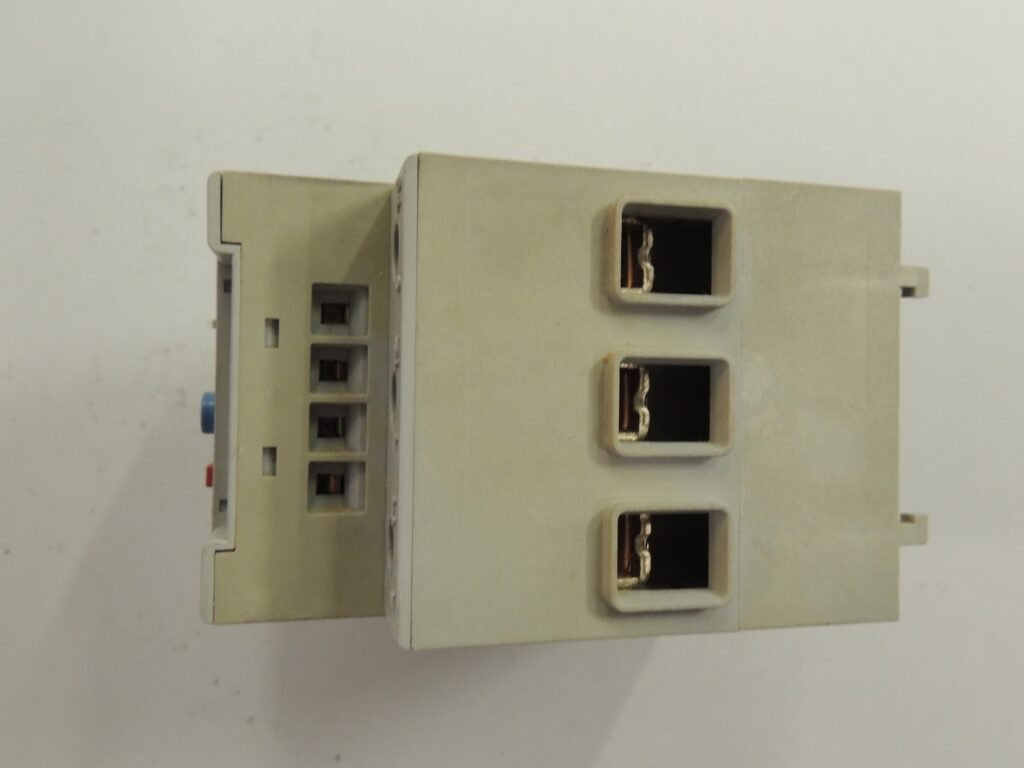

Allen-Bradley 193-EEGE E1 Plus Solid-State Overload Relay — 18–90A, Series A
$75
1
FOB North Carolina — freight quoted separately.
| Manufacturer | Allen-Bradley (Rockwell Automation) |
|---|---|
| Model | 193-EEGE (E1 Plus) |
| Type | E1 Plus solid-state overload relay, Series A |
| Current Range | 18-90 A (3-phase) |
| Trip Class | 10-30, selectable |
| Trip Rating | 120% of FLA dial setting |
| Power Terminals (T1/T2/T3) | 600 V max, #1 AWG max (50 mm²), 36 lb-in (4 N·m) |
| Control Terminals (95-98) | 600 V, 24-10 AWG (0.5-4 mm²), 5 lb-in (0.55 N·m) |
| Conductor Rating | 75 °C Cu wire only |
| Standards | UL Listed Ind. Cont. Eq. A191; NEMA; CE |
Condition
Used, good. Standalone E1 Plus overload relay. The full data plate is legible including the current range, trip class band and terminal torques. Dial turns; reset and test functions present. Housing clean.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
