Lot of Powered Roller Conveyor — Straight Sections with Sensors and Harnesses
Powered / live roller conveyor, straight sections
Request Quote
Details →
OTT-5001 · Conveyors & Material Handling

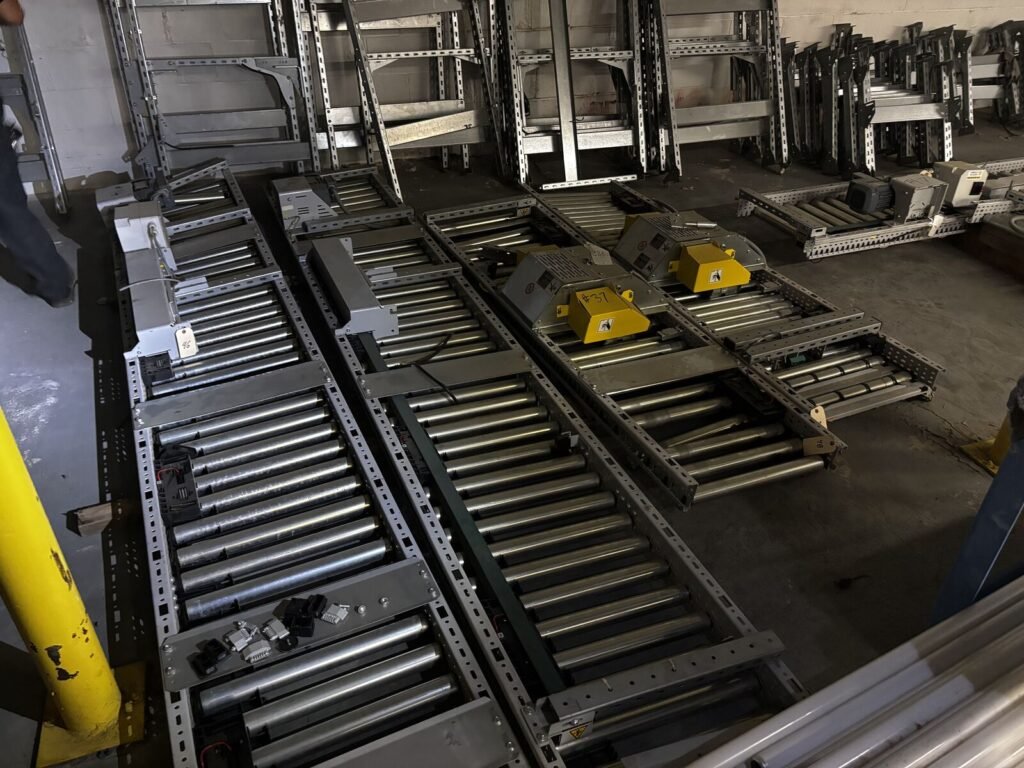

SSI Schäfer Powered Roller Conveyor System — Zone Sections, Transfers, Gearmotors and Stands
Request Quote
Large lot — approximately 15-25 conveyor sections and drive/transfer modules, plus a stacked bundle of 8-10 additional sections and 20+ vertical support legs (counts estimated from photos)
| Manufacturer | Conveyor manufacturer not confirmed from our photos; drive motors by Neri Motori, Italy |
|---|---|
| Model | Motors T63C6, cod. M01DR507 |
| Conveyor Type | Motor-driven roller (MDR) powered zone conveyor — straight sections plus right-angle transfer modules |
| Motor Type | 3-phase asynchronous, T63C6 (880 rpm at 50 Hz — 6-pole per the type code) |
| Motor @ 50 Hz | 230/400 V, 0.18 hp / 0.13 kW, 880 rpm, 1.2/0.7 A |
| Motor @ 60 Hz | 280/480 V, 0.22 hp / 0.16 kW, 1060 rpm, 1.2/0.7 A |
| Motor Protection | IP 55 |
| Motor Insulation | Class 155F |
| Motor Duty | S1 |
| Motor Power Factor | Cos φ 0.57 |
| Motor Mounting | Fl. B3 LAT.DX |
| Standards | IEC 34-1, CE, cULus |
Condition
Used, professionally dismantled and palletized. Galvanized frames and rollers in good serviceable condition with light surface scuffing. Guards, drive boxes, motors and wiring appear complete and attached.
Before you orderBUYER NOTE: the drive motors are European-wound and nameplated 280/480 V at 60 Hz — verify compatibility with your supply. The motor data above is transcribed from a drive-motor nameplate. A drive-control-box label carrying a conveyor manufacturer marking is present on the system but is not legible in the photos we are publishing, so we are not asserting a conveyor brand — ask us and we will photograph that label. Individual section lengths and roller widths are not measurable from the photos; contact us for a measured manifest.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
