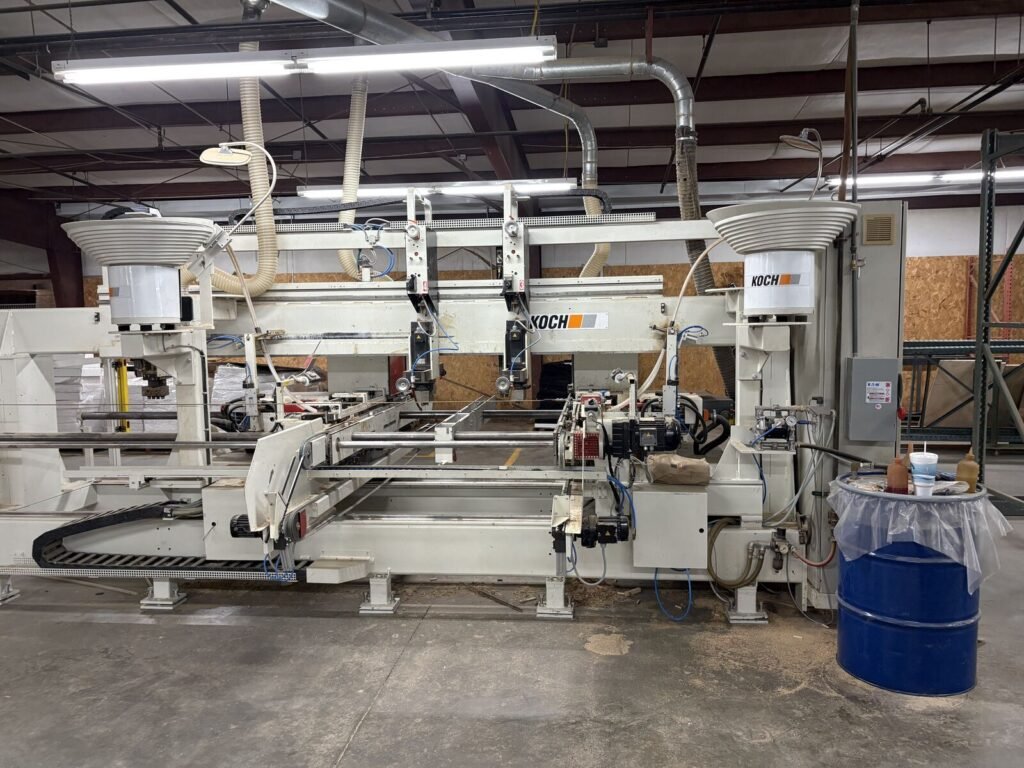

Koch SBD-B Automatic Boring and Dowel Insertion Machine — 400V 3PH, 22 kW, Year 2005
Request Quote
1 machine line
| Manufacturer | Gerhard Koch Maschinenfabrik GmbH & Co. KG, Leopoldshöhe, Germany |
|---|---|
| Model | SBD-B |
| Serial No. | A 0507/7251 |
| Year of Manufacture | 2005 |
| Rated Load | 22 kW |
| Rated Voltage | 400 V |
| Phase | 3 Phase |
| Frequency | 50 Hz |
| Max Operating Full Load Current | 45 A |
| Wiring Diagram | 635/5 |
| Max Air Pressure | 7 bar |
| Included | Operator control pedestal, two-door glue/electrical control cabinet, Leuze light curtain, two dust collection hoods, pneumatic tubing and glue lines |
Condition
Used. Cream/white enclosure with sawdust accumulation on the bed and floor and some staining on the horizontal beam. Pneumatic tubing, glue lines and dust hoods intact. Operator console with LCD and pushbutton array present. Appears complete.
Before you orderIMPORTANT BUYER NOTE: this machine is nameplated 400 V / 50 Hz — verify supply compatibility for a 60 Hz North American installation before purchase. Machine has not been powered up or run by us.
How we catalog
Every specification above is transcribed from this unit's own nameplate or data label. Nothing is inferred from a model number or copied from a manufacturer catalog. Where a plate was unreadable or absent, the field is left off rather than estimated. Equipment is sold as-is; we have not powered up or performance-tested these units unless stated. Inspection is welcome and encouraged before purchase.
